Quick Details

  • Standard or Nonstandard: Standard
  • Structure: Pressure balanced plug type, Pressure balanced plug type
  • Pressure: ANSI 150#,300#,600#
  • Power: Diaphragm type
  • Material: Stainless Steel
  • Temperature of Media: Normal Temperature
  • Media: liquid,gas or steam
  • Port Size: accurate
  • Place of Origin: Jiangsu, China (Mainland)
  • Model Number: 100D
  • Brand Name: ZOOLV
  • Application: General
  • Cage: Labyrinth Chip
  • Characteristic: Linear
  • Trim Treatment: Stellited or special Treatment
  • Function: Reduce sound, Anti-Cavitation
  • Rangeability: Large Ratio
  • Working Temperature: -196 ~+565°C
  • Face to face dimension: ASME Standard,DIN Standard,etc
  • Gasket: Spiral wound metal,with Grafoil or Teflon filler
  • Leakage: IV,V

Packaging & Delivery

Packaging Details Strong Wooden Case
Delivery Time 30-60days





Product Description



The Series 100D Valves are engineered  for critical anti-cavitation and low noise applications on liquids,gases or steam.



Multi-stage cage control flowing velocities in the valve trim by forcing the process fluid to follow a tortuous path of right-angle turns.The resistance to flow provided by these turns reduces fluid velocities significantly.Therefore, a vena contracta is never formed in the trim and noise and cavitation are stopped before they can start.





Standard Specifications:

Series :100D
Body size:1B~18B(DN25~450)

Body ratings:ANSI 150#,300#,600#;900#;1500#;25003

                        PN1.6,PN4.0,PN6.3,PN10;PN25;PN32;PN42

Body Material :WCB,CF8,CF8M,etc.
Characteristics:Eq%, Linear
Rangeability :50:1
Temperature :-196~+565°C
Leakage: Metal seateded ANSI CLASS IV,V

                  Soft seateded ANSI CLASS VI





Characteristics:

 1.Anti-cavitationand low noise applications on liquids,gas,orsteam.Multi-stage cage combined with special Labyrinth chips controls flowing velocities in the valve trim by forcing the process fluid to follow a tortuous path of right-angle turns.The resistance to flow provided by these turns reduces fluid velocities significantly.Therefore, a vena contracta is never formed in the trim and noise and cavitationare stopped before they can start.

 2.Pressure Balanced plug Type is of Dynamic Stability,most Suitable and economical for the controls of high-pressure & high pressure drops liquids.

3.Adopt Balance Seal,improved the effect of seat.

4.Trim form is easy for disassembly,reassembly, exchange and maintence.The Body and Bonnet is the same as 100C &110C.

5.Fine-ExtensionTypeBonnet— For Middle-High Temp(+230~+565℃),

                                                          For Low Temp(-45~-5℃)

 Long-Extension Type Bonnet—   For Low Temp(-100~-45℃)
 Long-Extension Type Bonnet—   For Low Temp(-196 ~ -100℃

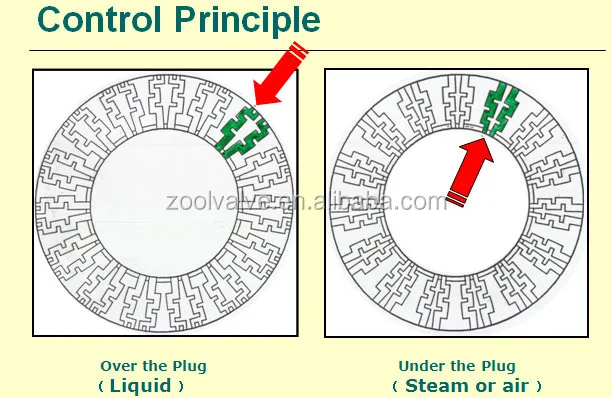

Labyrinth Chip:







Packaging & Shipping

 Packaging: Plywooden case

 Shipping: The seller ensures packing suitable for shipment by sea to protect the goods from damages.
